axial flow non slam check valve

Product Overview:

The Axial Flow Non-Slam Check Valve is designed to provide reliable backflow prevention in pipelines where high velocity or sudden flow reversal may occur. Unlike traditional swing check valves, the non-slam feature ensures that the valve’s disc does not "slam" or close abruptly, preventing water hammer and reducing mechanical wear. This valve is particularly suitable for high-velocity applications, making it ideal for industries such as water treatment, power generation, oil and gas, and chemical processing. It offers enhanced durability, reliability, and protection for downstream equipment, while ensuring smooth and controlled fluid flow in critical applications.

Product Features:

Non-Slam Design: The valve’s non-slam mechanism ensures smooth, gradual closure of the valve disc. This design prevents the violent slamming associated with high-velocity flow, which reduces the risk of water hammer and protects downstream equipment.

Axial Flow Design: The axial flow design of this valve allows fluid to flow in the same direction as the valve body, minimizing pressure loss and ensuring efficient flow through the system. This also reduces turbulence and stress on the valve’s components.

Quick Closing Mechanism: The valve features a spring-assisted mechanism that allows for rapid closure upon detecting backflow, preventing reverse flow and protecting system integrity.

Corrosion and Wear Resistance: Constructed from durable materials such as stainless steel, carbon steel, and alloy steels, the valve is resistant to corrosion, wear, and erosion, providing long-lasting performance in harsh environments.

Compact and Robust Construction: Its compact design makes it ideal for installations in confined spaces without compromising on performance. It is designed to handle the stress and pressure associated with high-velocity flows.

Advantages

Prevents Water Hammer: The non-slam feature ensures gradual closure of the valve disc, significantly reducing the risk of water hammer. This not only prevents damage to the pipeline but also minimizes noise and vibrations in the system.

Improved System Longevity: The gentle closing action minimizes mechanical stress on the valve and adjacent components, extending the lifespan of the entire system.

Enhanced Flow Efficiency: The axial flow design promotes smooth fluid passage with minimal pressure drop, resulting in improved system efficiency and reduced energy consumption.

Versatile Application Range: Suitable for a wide range of applications, including high-velocity fluid flow in power generation, water treatment, chemical processing, and oil & gas pipelines.

Reliability and Safety: The valve provides dependable one-way flow control and protects downstream equipment from the negative effects of backflow.

Applications

The Axial Flow Non-Slam Check Valve is ideal for industries and applications that require reliable backflow prevention and smooth fluid flow, such as:

Water and Wastewater Treatment Plants: Prevents reverse flow and backpressure, ensuring efficient system operation and protection of downstream equipment.

Power Generation: Protects pumps, turbines, and compressors from reverse flow and water hammer, ensuring the safety and efficiency of steam and water systems.

Oil and Gas Pipelines: Safeguards critical infrastructure, including pumps and compressors, from damaging backflow in high-pressure pipeline systems.

Chemical Processing: Suitable for handling a variety of fluids in chemical plants, ensuring that hazardous materials do not flow in reverse and cause contamination or damage.

Industrial Fluid Systems: Ideal for applications requiring the prevention of backflow in high-velocity, high-pressure environments, such as in HVAC, fire suppression systems, and more.

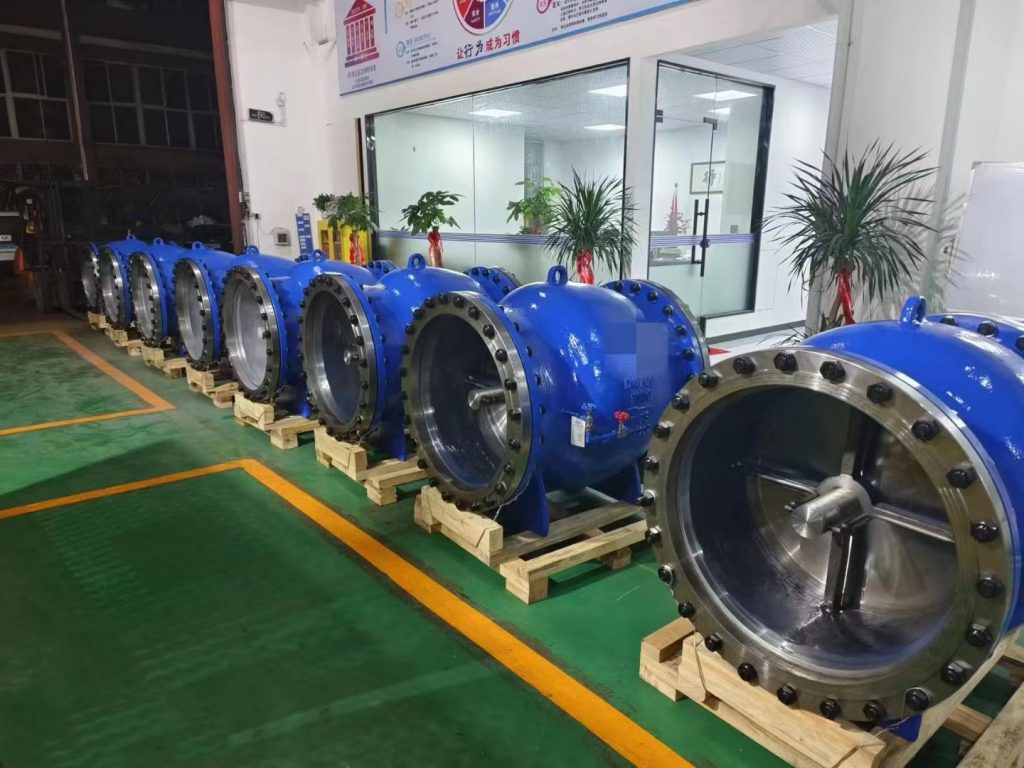

Product Photos
